All Information here is Courtesy of Georgia State University



Surface Tension

The cohesive forces between liquid molecules are responsible for the phenomenon known as surface tension. The molecules at the surface do not have other like molecules on all sides of them and consequently they cohere more strongly to those directly associated with them on the surface. This forms a surface "film" which makes it more difficult to move an object through the surface than to move it when it is completely submersed.

Surface tension is typically measured in dynes/cm, the force in dynes required to break a film of length 1 cm. Equivalently, it can be stated as surface energy in ergs per square centimeter. Water at 20°C has a surface tension of 72.8 dynes/cm compared to 22.3 for ethyl alcohol and 465 for mercury.



Decrease in water surface tension with heating
Index

Fluid concepts

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back







Cohesion and Surface Tension

The cohesive forces between molecules down into a liquid are shared with all neighboring atoms. Those on the surface have no neighboring atoms above, and exhibit stronger attractive forces upon their nearest neighbors on the surface. This enhancement of the intermolecular attractive forces at the surface is called surface tension.

Index

Fluid concepts

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back







Surface Tension of Water

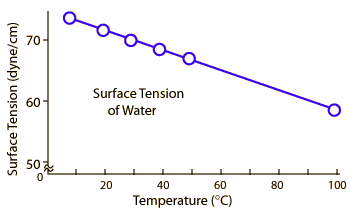

The surface tension of water is 72 dynes/cm at 25°C . It would take a force of 72 dynes to break a surface film of water 1 cm long. The surface tension of water decreases significantly with temperature as shown in the graph. The surface tension arises from the polar nature of the water molecule.

Hot water is a better cleaning agent because the lower surface tension makes it a better "wetting agent" to get into pores and fissures rather than bridging them with surface tension. Soaps and detergents further lower the surface tension.
Water
Index

Fluid concepts

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back







Cohesion and Adhesion

Molecules liquid state experience strong intermolecular attractive forces. When those forces are between like molecules, they are referred to as cohesive forces. For example, the molecules of a water droplet are held together by cohesive forces, and the especially strong cohesive forces at the surface constitute surface tension.



When the attractive forces are between unlike molecules, they are said to be adhesive forces. The adhesive forces between water molecules and the walls of a glass tube are stronger than the cohesive forces lead to an upward turning meniscus at the walls of the vessel and contribute to capillary action.



The attractive forces between molecules in a liquid can be viewed as residual electrostatic forces and are sometimes called van der Waals forces or van der Waals bonds.

Index

Fluid concepts

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back







Surface Tension Examples

Walking on water

Small insects such as the water strider can walk on water because their weight is not enough to penetrate the surface.

Floating a needle

If carefully placed on the surface, a small needle can be made to float on the surface of water even though it is several times as dense as water. If the surface is agitated to break up the surface tension, then needle will quickly sink.

Don't touch the tent!

Common tent materials are somewhat rainproof in that the surface tension of water will bridge the pores in the finely woven material. But if you touch the tent material with your finger, you break the surface tension and the rain will drip through.

Soaps and detergents

help the cleaning of clothes by lowering the surface tension of the water so that it more readily soaks into pores and soiled areas.

Clinical test for jaundice

Normal urine has a surface tension of about 66 dynes/cm but if bile is present (a test for jaundice), it drops to about 55. In the Hay test, powdered sulfur is sprinkled on the urine surface. It will float on normal urine, but sink if the S.T. is lowered by the bile.

Washing with cold water

The major reason for using hot water for washing is that its surface tension is lower and it is a better wetting agent. But if the detergent lowers the surface tension, the heating may be unneccessary.

Surface tension disinfectants

Disinfectants are usually solutions of low surface tension. This allow them to spread out on the cell walls of bacteria and disrupt them. One such disinfectant, S.T.37, has a name which points to its low surface tension compared to the 72 dynes/cm for water.

Can you think of another?

Index

Fluid concepts

Surface tension

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back







Surface Tension and the Water Strider

This interesting insect can freely run along the surface of a quiet pond. It's tiny mass and the geometry of its legs allow it to be supported by the high surface tension of water.

Water
Index

Fluid concepts

HyperPhysics***** Mechanics ***** Fluids R Nave
Go Back



All Information on this page is courtesy of

http://hyperphysics.phy-astr.gsu.edu/hbase/surten.html#c1

Georgia State University does not endorse the Grant Chronicles this page is a representation of mankind's current view of the subject
